Laboratory balances / analytical balances

KERN EMB

KERN EMB balance

  • low cost balance
  • auto-off function after 3 min without a change of load to preserve the batteries
  • one 9 V or two AA 1,5 V batteries depending on the model are included
  • dimensions (WxDxH): 170 x 240 x 39 mm
  • option: 220 V / 9 V adapter (ref.KERN 440-902)
Model readout range plate
g g mm
EMB 100-3 0,001 100 82
EMB 200-3 0,001 200 82
EMB 200-2 0,01 200 82
EMB 600-2 0,01 600 82
EMB 1000-2 0,01 1000 105
EMB 2000-2 0,01 2000 105
EMB 220-1 0,1 220 105
EMB 500-1 0,1 500 105
EMB 1200-1 0,1 1200 105
EMB 2200-0 1 2200 105
EMB 5.2K1 1 5200 105
EMB 5.2K5 5 5200 105
EMB 6000-1 1 6000 105


KERN EFB

KERN EFB, solar balance

  • solar powered balance
  • internal energy storage for bad lighting conditions
  • auto-off function after 3 min without a change of load
  • dimensions (WxDxH): 170 x 240 x 39 mm
Model readout range reproductibility linearity
g g g g
EFB 200-1 D 0,1/0,2 100/200 0,1/0,2 ±0,3/±0,6
EFB 2000-0 D 1/2 1000/2000 1/2 ±3/±6
EFB 5K2 D 2/5 2000/5000 2/5 ±6/±15


KERN 440

KERN 440 balance

  • very easy to use
  • function piece counting
  • function net total weighting and weight of tarecup and weight of components memorized in two separate stores
  • adapter 220 V / 9 V included
  • battery operation possible with 9 V battery
  • auto-off function after 3 min without a change of load to preserve the batteries
  • interface: RS232
  • data transfert to a computer or a printer like:
    • KERN YKT-01
    • KERN YKB-01
  • stainless steel weighting plate
  • dimensions (WxDxH): 165 x 230 x 80 mm
Model readout range reproductibility linearity plate
g g g g mm
440-21N 0,001 40 0,001 ±0,003 diam. 65
440-21A 0,001 60 0,001 ±0,003 diam. 65
440-33N 0,01 200 0,01 ±0,02 diam. 105
440-35N 0,01 400 0,01 ±0,03 diam. 105
440-35A 0,01 600 0,01 ±0,03 diam. 105
440-43N 0,1 400 0,1 ±0,2 130x130
440-45N 0,1 1000 0,1 ±0,2 130x130
440-47N 0,1 2000 0,1 ±0,2 130x130
440-49N 0,1 4000 0,1 ±0,3 170x150
440-49A 0,1 6000 0,1 ±0,3 170x150
440-51N 1 4000 1 ±2 170x150
440-53N 1 6000 1 ±2 170x150
440-55N 0,2 6000 0,2 ±0,6 170x150


KERN KB

KERN KB balance

  • function piece counting
  • numerical tare deduction for container weighing. Useful when checking loads
  • user guidance step by step in the display
  • adapter 220 V / 9 V included
  • interface: RS232
  • data transfert to a computer or a printer like:
    • KERN YKT-01
    • KERN YKB-01
  • stainless steel weighting plate
  • dimensions (WxDxH): 165 x 230 x 80 mm
  • now also some of them with EC-type approval (M)
Model readout range reproductibility linearity plate
g g g g mm
KB120-3N 0,001 121 0,001 ±0,003 diam. 81
KB200-3N 0,001 201 0,001 ±0,003 diam. 81
KB240-3N 0,001 241 0,001 ±0,003 diam. 81
KB360-3N 0,001 361 0,001 ±0,003 diam. 81
KB1200-2N 0,01 1210 0,01 ±0,03 130x130
KB2000-2N 0,01 2010 0,01 ±0,03 130x130
KB2400-2N 0,01 2410 0,01 ±0,03 130x130
KB3600-2N 0,01 3610 0,01 ±0,03 130x130
KB10K0.05N 0,05 10100 0,05 ±0,15 150x170
KB10000-1N 0,1 10100 0,1 ±0,3 150x170

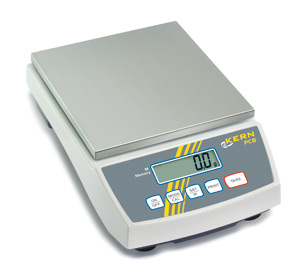

KERN PCB

KERN PCB balance

  • function piece counting
  • PRE-TARE function for manual subtraction of a known container weight
  • numerical tare deduction for known container weight
  • adapter 220 V / 9 V included
  • interface: RS232
  • data transfert to a computer or a printer like:
    • KERN YKT-01
    • KERN YKB-01
    • KERN YKL-01 (label printer)
  • stainless steel weighting plate
  • GLP with printer YKT-01
  • dimensions (WxDxH): 163 x 245 x 79 mm
Model readout range reproductibility linearity plate
g g g g mm
PCB 40-3 0,001 40 0,001 ±0,003 diam. 81
PCB 60-3 0,001 60 0,001 ±0,003 diam. 81
PCB 100-3 0,001 100 0,001 ±0,003 diam. 81
PCB 200-2 0,01 200 0,01 ±0,02 diam. 105
PCB 400-2 0,01 400 0,01 ±0,03 diam. 105
PCB 400-1 0,1 400 0,1 ±0,2 130x130
PCB 600-2 0,01 600 0,01 ±0,03 diam. 105
PCB 800-2 0,01 800 0,01 ±0,03 diam. 105
PCB 1000-2 0,01 1000 0,01 ±0,03 diam. 105
PCB 1000-1 0,1 1000 0,1 ±0,2 diam. 105
PCB 2000-1 0,1 2000 0,1 ±0,2 130x130
PCB 4000-1 0,1 4000 0,1 ±0,3 150x170
PCB 4000-0 1 4000 1 ±2 150x170
PCB 6000-1 0,1 6000 0,1 ±0,3 150x170
PCB 6000-0 1 6000 1 ±2 150x170
PCB 8000-1 0,1 8000 0,1 ±0,3 150x170


KERN 572

KERN 572 balance

  • function piece counting
  • function net total weighting and weight of tarecup and weight of components memorized in two separate stores
  • numerical tare deduction for known container weight
  • adapter 220 V / 9 V included
  • interface: RS232
  • data transfert to a computer or a printer like:
    • KERN YKB-01
    • KERN YKT-01
  • stainless steel weighting plate
  • dimensions (WxDxH): 180 x 310 x 90 mm
Model readout range reproductibility linearity plate
g g g g mm
572-31 0,001 161 0,001 ±0,003 diam. 105
572-32 0,001 201 0,001 ±0,003 diam. 105
572-33 0,01 1010 0,01 ±0,03 diam. 150
572-35 0,01 1210 0,01 ±0,03 diam. 150
572-37 0,01 2010 0,01 ±0,03 diam. 150
572-41 0,1 8100 0,05 ±0,15 160x200
572-45 0,1 12100 0,1 ±0,3 160x200
572-49 0,1 16100 0,1 ±0,3 160x200
572-57 0,2 20100 0,1 ±0,3 160x200


KERN EWB

KERN EWB balance

  • function piece counting
  • adapter 220 V / 9 V included
  • stainless steel weighting plate
  • weighing with tolerance range (Checkweighing). Input of one upper and lower limit value is possible in grams, pieces or %. A visual signal on the display helps with the dispensing or grading
  • verifiable
Model readout range reproductibility linearity plate
g g g g mm
EWB 220-2M 0,01 220 0,01 ±0,01 diam. 140
EWB 620-2M 0,01 620 0,01 ±0,01 diam. 140
EWB 1200-1M 0,1 1200 0,1 ±0,1 diam. 140


KERN EW

KERN EW balance

  • function piece counting
  • adapter 220 V / 9 V included
  • stainless steel weighting plate
  • capacity display. An ascending bar graph displays the remaining available weighing range
  • verifiable
  • option RS232
Model readout range reproductibility linearity plate
g g g g mm
EW 150-3M 0,001 150 0,002 ±0,003 diam. 110
EW 600-2M 0,01 600 0,01 ±0,02 diam. 140
EW 1500-2M 0,01 1500 0,01 ±0,02 diam. 140
EW 3000-2M 0,01 3000 0,01 ±0,02 diam. 140
EW 6000-1M 0,1 6000 0,1 ±0,2 172x142


KERN PLS

KERN PLS balance

  • function piece counting
  • set for density determinaton (hydrostatic weightung) ref. KERN PLS-A01
  • adapter 220 V / 9 V included
  • interface: RS232
  • data transfert to a computer or a printer like:
    • KERN YKB-01
    • KERN YKT-01
  • stainless steel weighting plate
Model readout range reproductibility linearity plate
g g g g mm
PLS 360-3 0,001 360 0,001 ±0,002 128x128
PLS 510-3 0,001 510 0,001 ±0,003 128x128
PLS 2100-2 0,01 2100 0,01 ±0,02 165x165
PLS 4000-2 0,01 4000 0,01 ±0,03 165x165


KERN EW-N

KERN EW-N balance

  • function piece counting
  • adapter 220 V / 9 V included
  • interface: RS232
  • data transfert to a computer or a printer like:
    • KERN YKB-01
    • KERN YKT-01
  • stainless steel weighting plate
  • GLP with printer KERN YKT-01
  • dimensions (WxDxH): 192 x 265 x 87 mm
Model readout range reproductibility linearity plate
g g g g mm
EW 120-4NM 0,0002 120 0,0002 ±0,0008 diam. 80
EW 220-3NM 0,001 220 0,001 ±0,002 diam. 118
EW 420-3NM 0,001 420 0,001 ±0,003 diam. 118
EW 620-2NM 0,001 620 0,001 ±0,003 diam. 118
EW 820-2NM 0,01 820 0,01 ±0,01 170x142
EW 2200-2NM 0,01 2200 0,01 ±0,01 180x160
EW 4200-2NM 0,01 4200 0,01 ±0,02 180x160
EW 6200-2NM 0,01 6200 0,01 ±0,03 180x160
EW 12000-1NM 0,1 12000 0,1 ±0,2 180x160


KERN PLT

KERN PLT balance

  • function piece counting
  • adapter 220 V / 9 V included
  • interface: RS232
  • data transfert to a computer or a printer like:
    • KERN YKB-01
    • KERN YKT-01
  • stainless steel weighting plate
  • internal adjustment control. Time-controlled every 3 h in the case of a change in temperature > 3°C
  • GLP with printer KERN YKT-01
  • option: Set for density determination of liquids and solids. Only suitable for models with readout d = 0,001g, the calculated density is indicated directly in the display, KERN PLS-A01
  • dimensions (WxDxH): 206 x 330 x 80 mm
Model readout range reproductibility linearity plate
g g g g mm
PLT450-3M 0,001 450 0,001 ±0,001 128x128
PLT650-3M 0,001 650 0,001 ±0,001 128x128
PLT2000-3DM 0,01/0,001 2000/200 0,01/0,001 ±0,01/±0,001 128x128
PLT2500-2M 0,01 2500 0,01 ±0,01 165x165
PLT4500-2M 0,01 4500 0,01 ±0,01 165x165


KERN ALS

KERN ALS balance

  • function piece counting
  • set for density determinaton (hydrostatic weightung) ref. KERN ALS-A01
  • adapter 220 V / 9 V included
  • interface: RS232
  • data transfert to a computer or a printer like:
    • KERN YKB-01
    • KERN YKT-01
  • stainless steel weighting plate
  • GLP with printer KERN YKT-01
  • dimensions (WxDxH): 210 x 330 x 335 mm
Model readout range reproductibility linearity plate
mg g mg mg mm
ALS 120-4 0,1 120 0,2 ±0,2 diam. 80
ALS 220-4 0,1 220 0,2 ±0,2 diam. 80


KERN ALT

KERN ALT balance

  • function piece counting
  • internal adjustment control. Time-controlled every 3 h in the case of a change in temperature > 3°C
  • set for density determinaton (hydrostatic weighting) ref. KERN ALS-A01
  • animal weighting possible
  • adapter 220 V / 9 V included
  • interface: RS232
  • data transfert to a computer or a printer like:
    • KERN YKB-01
    • KERN YKT-01
  • stainless steel weighting plate
  • dimensions (WxDxH): 206 x 500 x 335 mm
Model readout range reproductibility linearity plate
mg g mg mg mm
ALT 160-4NM 0,1 160 0,1 ±0,2 diam. 80
ALT 220-4NM 0,1 220 0,1 ±0,2 diam. 80
ALT 310-4AM 0,1 310 0,1 ±0,3 diam. 100
ALT 220-5DAM 0,1/0,01 220/60 0,1/0,02 ±0,2/±0,1 diam. 80
ALT 100-5AM 0,01 100 0,03 ±0,1 diam. 80

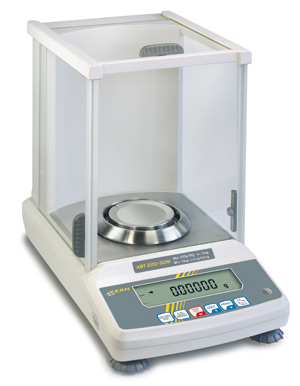

KERN ABT

KERN ABT balance

  • function piece counting
  • internal adjustment control. Time-controlled every 3 h in the case of a change in temperature > 3°C
  • set for density determinaton (hydrostatic weighting) ref. KERN ABT-A01
  • adapter 220 V / 9 V included
  • interface: RS232
  • data transfert to a computer or a printer like:
    • KERN YKB-01
    • KERN YKT-01
  • stainless steel weighting plate
  • dimensions (WxDxH): 206 x 500 x 335 mm
Model readout range reproductibility linearity plate
mg g mg mg mm
ABT 120-4M 0,1 120 0,1 ±0,2 diam. 80
ABT 220-4M 0,1 220 0,1 ±0,2 diam. 80
ABT 320-4M 0,1 320 0,1 ±0,2 diam. 80
ABT 120-5DM 0,1/0,01 120/42 0,1/0,02 ±0,2/±0,03 diam. 80
ABT 220-5DM 0,1/0,01 220/82 0,1/0,05 ±0,2/±0,1 diam. 80


KERN EW-C

KERN EW-C, carat balance

  • adaptater 220 V / 9 V included
  • interface: RS232
  • stainless steel weighting plate
Model readout range reproductibility linearity plate
ct/g ct/g ct ct mm
EW-600-C3 NM 0,001/0,001 600/120 0,003 ±0,003 diam. 80


Portable balance Adam Highland

  • backlit LCD display
  • capacity tracker
  • shockProtec(TM) overload three-point protection
  • removable draught shield (120mm pan size only)
  • below balance weighing with hanger
  • RS-232 and USB interface
  • handical(TM) manual internal calibration with built-in mass
  • auto power off
  • low battery indication
  • AC Adapter
Modèle readout range plate
g g mm
HCB 123 0,001 120 diam. 120
HCB 153 0,005 150 diam. 120
HCB 302 0,01 300 diam. 120
HCB 602H 0,01 600 diam. 120
HCB 1002 0,01 1000 diam. 120
HCB 1502 0,05 1500 diam. 120
HCB 3001 0,1 3000 diam. 120
